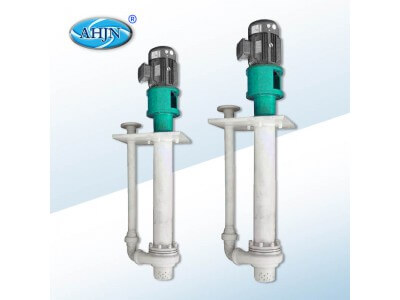

JUY耐腐耐磨液下泵簡稱“JUY液下泵”，與輸送介質接觸的過流部件采用超高分子聚乙烯(UHMWPE)及增強聚丙烯整體模壓而成的耐腐耐磨泵，液下深度1-2米，是性能穩定、技術成熟、受用戶歡迎、定型的防腐型泵類產品。
JUY耐腐耐磨液下泵具有優異的耐腐耐磨性能，其耐溫性、防腐性、機械穩定性、耐磨性以及運行費用的經濟性都得到了用戶的認可。
| 序號 | 型號(Model) | 轉速(Rev) =2900r/min 介質密度(Medium density)=1000kg/m3 | |||||
| 流量 | 揚程 | 出口 | 轉速 | 電機功率 | 整機重量 | ||
| Flow | Pump head | Outlet | (Rev) | Power | Weight | ||
| (m3/h) | (m) | (mm) | (mm) | (kW) | (kg) | ||
| 1 | 25JUY-3-5 | 3 | 5 | φ25 | 2900 | 0.75 | 55 |
| 2 | 25JUY-3-10 | 3 | 10 | φ25 | 2900 | 1.1 | 55 |
| 3 | 25JUY-5-15 | 5 | 15 | φ25 | 2900 | 1.1 | 55 |
| 4 | 25JUY-5-20 | 5 | 20 | φ25 | 2900 | 1.5 | 55 |
| 5 | 32JUY-5-25 | 5 | 25 | φ32 | 2900 | 2.2 | 63 |
| 6 | 32JUY-10-10 | 10 | 10 | φ32 | 2900 | 1.5 | 63 |
| 7 | 32JUY-10-15 | 10 | 15 | φ32 | 2900 | 1.5 | 63 |
| 8 | 32JUY-15-15 | 15 | 15 | φ32 | 2900 | 2.2 | 63 |
| 9 | 32JUY-10-20 | 10 | 20 | φ32 | 2900 | 2.2 | 63 |
| 10 | 40JUY-10-30 | 10 | 30 | φ40 | 2900 | 3 | 95 |
| 11 | 40JUY-15-20 | 15 | 20 | φ40 | 2900 | 3 | 95 |
| 12 | 40JUY-15-28 | 15 | 28 | φ40 | 2900 | 3 | 95 |
| 13 | 40JUY-20-10 | 20 | 10 | φ40 | 2900 | 3 | 95 |
| 14 | 40JUY-20-20 | 20 | 20 | φ40 | 2900 | 4 | 108 |
| 15 | 40JUY-20-25 | 20 | 25 | φ40 | 2900 | 4 | 108 |
| 16 | 40JUY-30-15 | 30 | 15 | φ40 | 2900 | 4 | 108 |
| 17 | 40JUY-20-30 | 20 | 30 | φ40 | 2900 | 5.5 | 126 |
| 18 | 50JUY-30-15 | 30 | 15 | φ50 | 2900 | 5.5 | 126 |
| 19 | 50JUY-30-20 | 30 | 20 | φ50 | 2900 | 5.5 | 130 |
| 20 | 50JUY-30-25 | 30 | 25 | φ50 | 2900 | 5.5 | 130 |
| 21 | 50JUY-30-30 | 30 | 30 | φ50 | 2900 | 7.5 | 130 |
| 22 | 50JUY-40-10 | 40 | 10 | φ50 | 2900 | 5.5 | 130 |
| 23 | 50JUY-40-15 | 40 | 15 | φ50 | 2900 | 5.5 | 130 |
| 24 | 65JUY-40-15 | 40 | 15 | φ65 | 2900 | 5.5 | 165 |
| 25 | 65JUY-40-20 | 40 | 20 | φ65 | 2900 | 7.5 | 170 |
| 26 | 65JUY-45-25 | 45 | 25 | φ65 | 2900 | 7.5 | 170 |
| 27 | 65JUY-50-8 | 50 | 8 | φ65 | 2900 | 7.5 | 170 |
| 28 | 65JUY-45-30 | 45 | 30 | φ65 | 2900 | 11 | 219 |
| 29 | 65JUY-50-25 | 50 | 25 | φ65 | 2900 | 11 | 219 |
| 30 | 65JUY-60-20 | 60 | 20 | φ65 | 2900 | 11 | 219 |
| 31 | 80JUY-60-30 | 60 | 30 | φ80 | 2900 | 15 | 280 |
| 32 | 80JUY-80-30 | 80 | 30 | φ80 | 2900 | 18.5 | 310 |
| 33 | 80JUY-100-30 | 100 | 30 | φ80 | 2900 | 22 | 350 |
| 34 | 100JUY-100-26 | 100 | 26 | φ100 | 2900 | 22 | 450 |
| 35 | 100JUY-90-30 | 90 | 30 | φ100 | 2900 | 22 | 450 |
| 36 | 100JUY-120-25 | 120 | 25 | φ100 | 2900 | 22 | 450 |
| 37 | 100JUY-130-23 | 130 | 23 | φ100 | 2900 | 22 | 450 |
品牌廠家：JiangNan/江南泵業
